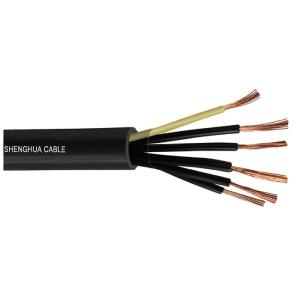

PVC insulated PVC Sheathed Control Flexible Cores H07VV-F Cables
Application
H07VV-F 450/750V Copper Conductor Flexbile PVC Cable is used for installations of moving equipment, electric appliances and for building sites of rated voltage 450/750V and below
Product Description
1) Rated Voltage: 450/750V
2) Working temperature: 80°c
3) Conductor: class 5 copper
4) Sectional area: 0.75~4mm2
5) Insulation: PVC
6) No. of cores: 2~5
7) Sheath: PVC
| Sectional area (mm2) | Insulation thickness (mm) | Sheath thickness (mm) | Overall diameter (mm) | Max. DC Resistance at 20°C (Ohm/km) |
| 2x0.75 | 0.6 | 0.8 | 6.4 | 12.1 |
| 2x1 | 0.6 | 0.8 | 6.7 | 12.1 |
| 2x1.5 | 0.7 | 0.8 | 7.6 | 7.41 |
| 2x2.5 | 0.8 | 1.0 | 9.5 | 7.41 |
| 2x4 | 0.8 | 1.1 | 10.8 | 4.61 |
| 3x0.75 | 0.6 | 0.8 | 6.8 | 4.61 |
| 3x1 | 0.6 | 0.8 | 7.1 | 3.08 |
| 3x1.5 | 0.7 | 0.9 | 8.2 | 3.08 |
| 3x2.5 | 0.8 | 1.1 | 10.4 | 1.83 |
| 3x4 | 0.8 | 1.2 | 11.7 | 1.15 |
| 4x0.75 | 0.6 | 0.8 | 7.4 | 0.727 |
| 4x1 | 0.6 | 0.9 | 7.9 | 0.524 |
| 4x1.5 | 0.7 | 1.0 | 9.2 | 0.387 |
| 4x2.5 | 0.8 | 1.1 | 11.3 | 0.268 |
| 4x4 | 0.8 | 1.2 | 12.7 | 0.193 |
| 5x0.75 | 0.6 | 0.9 | 8.3 | 0.153 |
| 5x1 | 0.6 | 0.9 | 8.7 | 0.124 |
| 5x1.5 | 0.7 | 1.1 | 10.4 | 0.0991 |
| 5x2.5 | 0.8 | 1.2 | 12.6 | 0.0754 |
| 5x4 | 0.8 | 1.4 | 14.4 | 0.0601 |
Packaging Details:
Packing Lengths: According to customer request, 100m/roll,200m/roll,300m/roll....
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
Delivery Details:
FOB Shanghai.Delivery within 7-21 days or according to customer's request.
Shipping
Ship by DHL, TNT, UPS, FEDEX and cooperated ship agent.
Ship by air, by sea
